Tape Cutting Machine
Apply for slitting BOPP/PVC/PE/masking paper/imported high-grade double-sided tape/kraft paper tape/foam tape/duct tape/industrial adhesive tape/protective film etc.
1.Automatic control of PLC system with LCD touch screen control panel , 20 modes for size setting each time & auto changing when cutting. Easy function setting, user-friendly interface.
2. Auto liquid silicon water spray cooling system: to avoid the adhesive sticking on the blade and ensure the smooth cutting.
3. AC motors for cutting blade and cutting shaft with inverters speed changing.
4. Positioning system for cutting: servo motor to control more accurate position.
5. Sliding system,high precision liner sliding track and ball screw.
6. Auto cutting angel adjustment ±8° can well protect the cutting blade as well as guarantee the cutting edge flatness.
Range of Application:
1. width of cutting shaft: 1300mm
2. cutting width: 1-1300mm
3. core ID: 25.4mm, 38mm, 76mm
4. Circular knife diameter: 180-200 mm
5. Max cutting diameter: 200mm
6. Cutting speed: 0-35 cuts/min
7. Paper core diameter: 25.4mm, 38mm , 76.2mm
8. voltage: according to your local industrial voltage (50HZ 3 Phase)
| Machine Width | 1.0M 1.3M 1.6M |
| Cutting Accuracy | ±0.1mm |
| Max Cutting Diameter | 210mm |
| Min Cutting Width | 3mm |
| Circular Knife Diameter | Φ180-250mm |
| Using Paper Core Diameter | Φ25.4、32、38、76.2mm |
CENTRAL CONTROL SYSTEM
Central unit controlled by PLC, original Japan Mitsubishi brand.

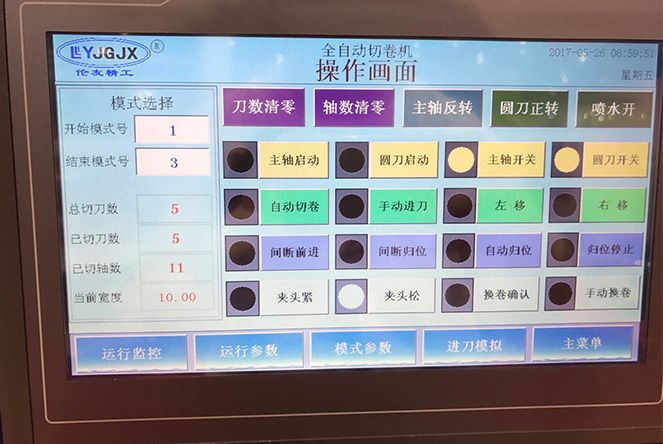

TOUCH SCREEN
Cutting width, cutting speed, cutting angle related can be set on touchscreen. Problem feedback onto touch screen.

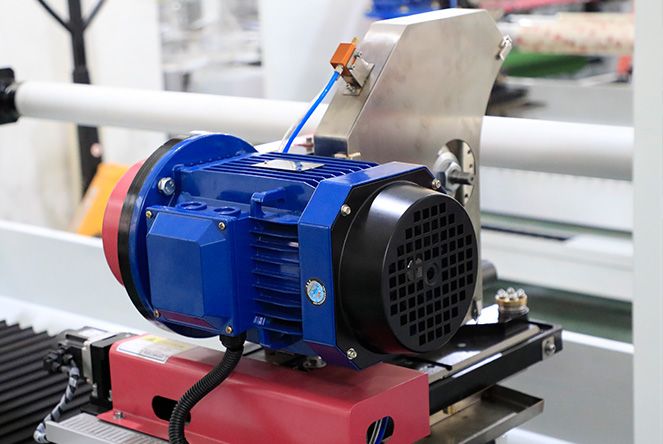

CUTTING BLADE
Taiwan brand tungsten steel blade.minimum cutting width is 3mm. Usage life is 10 times of common steel blade
MITSUBISHISERVO MOTOR
Cutting tape size, blade feeding.blade angle are all controlled by Mitsubishi Servo motors
