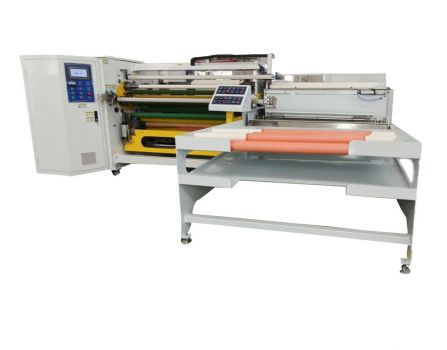

Tape Rewinding Machine
Apply to rewinding all kinds of adhesive tapes,industrial/electronic and packing materials.
Feature:
1.Two-section length setting, accurate winding length: it stops automatically with inverter control when the setting length reaches.
2.High-performance programmable controller making overall rewinding operation quite easy. Length counting and tension control are via LED touch screen.
3.Pneumatic paper tube securing design, with robust paper tube easy and quick for loading and unloading, promoting efficiency to the most.
4.Automatic tailing paper smoothing device(optional) to eliminate wrinkling or air bubbles after rewinding, ensuring the rewound products neat and smooth.
5.Hydraulic loading mechanism(optional) ensuring loading operations easily
6.Pressure roller controlled with cylinder, with pressure adjustable, the semi-finished products are pressed properly to ensure smooth and steady rewinding of semi-finished products
7.Automatic label posting(optional)
| Machine Width | 1.0M 1.3M 1.6M |
| Rewinding Width | 960-1580mm |
| Max Unwinding Diameter | 800mm |
| Max Rewinding Diameter | 250mm |
| Max Rewinding Speed | 260M/min |
| Paper Tube ID | Φ38、42、76.2mm |
| Main Motor | 5HP×2 |
| Adopted Air Pressure | 6bar |
PU PRESS ROLLER
150 mm PU press roller can remove air bubbles of BOPP tape, super clear tape length is 200 m
REWINDING TENSION
Center rewinding tension is controlled by motor, more strength and stable during rewinding
AUTOMATIC SMOOTHING UNIT
Flatten the end of tape automatically when rewinding finished.
AUTOMATIC CUTTING TAPE UNIT
Cutting tape automatically when rewinding finished, manual or automatic device can be chosen.
2 REWINDING SHAFTS EXCHANGE SYSTEM
2 shafts exchange system can save labor's time, more higher production capacity.
